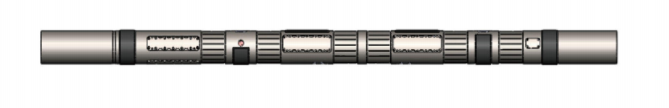

Hydraulic Expandable Stabilizer Working Principle: Real-Time Gauge Control Technology
Dual Operating Mode Mechanism
1. Expansion Phase - Pumps Operating
Component | Action | Result |
Hydraulic Piston | Moves upward under pressure | Activates push rods |
Expandable Blades | Extend radially | Increase outer diameter |
Locking Mechanism | Engages at maximum extension | Maintains position |
Flow Control Valve | Regulates pressure ramp rate | Prevents shock loading |
Expansion Sequence:
-Pump startup creates pressure increase in flow line
-Hydraulic fluid transfers pressure to piston chamber
-Mechanical linkage converts linear motion to radial blade movement
-Maximum extension achieved within 15-30 seconds of pumping
2. Retraction Phase - Pumps Off
Trigger | Mechanism | Outcome |
Pump stoppage | Pressure decay in system | Spring initiation |
Return Springs | Provide retraction force | Blades pull inward |
Pressure Relief | Controlled bleed-off | Smooth transition |
Mechanical Stops | Limit retraction travel | Maintain minimum clearance |
Retraction Process:
-Pressure drop below threshold level
-Spring force overcomes hydraulic pressure
-Blades retract to minimum diameter
-Tool ready for tripping or further adjustments
Key Components & Functions
Hydraulic Power System
Pressure Chamber: Contains hydraulic fluid, responds to mud pressure changes
Control Valve: Manages pressure application rate (300-500 psi operating range)
Piston Assembly: Converts hydraulic pressure to mechanical force
Blade Activation Mechanism
Push Rods: Transfer motion from piston to blades
Sliding Guides: Ensure parallel blade movement
Tungsten Carbide Inserts: Provide wear resistance in extended position
Safety & Control Features
Pressure Relief Valve: Prevents over-pressurization
Mechanical Stops: Limit maximum blade extension
Spring Backup: Ensures positive retraction
Technical Operating Parameters
Pressure Response Characteristics
Parameter | Specification |
Activation Pressure | 300-500 psi above circulating pressure |
Response Time | 15-30 seconds for full extension |
Pressure Range | 500-3500 psi operating window |
Retraction Time | 10-20 seconds after pump stoppage |
Gauge Adjustment Range
Tool Size | Minimum Gauge | Maximum Gauge | Adjustment Range |
8-1/2" Tool | 8.25 inches | 9.75 inches | 1.5 inches |
12-1/4" Tool | 12.0 inches | 14.0 inches | 2.0 inches |
Custom Sizes | Various | Various | 1.5-2.5 inches |
Performance Advantages
-Compared to Fixed Stabilizers
Eliminates tripping for BHA changes
Reduces drag by 40% in retracted position during tripping
Decreases torque by 25% through optimized wellbore contact
-Vibration Reduction
Absorbs lateral vibrations through hydraulic damping
Reduces stick-slip by maintaining consistent wall contact
Protects MWD/LWD tools from shock loads
